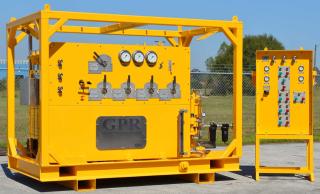

4 Station, 40 Gallon BOP Control System w/Pneumatic Operated Remote Panel
Product Description
- Working Pressure: 3,000 PSI
- Lift Frame constructed in accordance with DNV 2.7-3 standards with four-post frame, drip pan, sectioned removable roof panels and forklift pockets
- 40 Gallon Fluid Reservoir, Inspection Ports and 15” Clean-Out Hatches
Additional Information
BOP Consists of:
- (3) 1” Selector Valves, (1) Annular Selector Valve and (1) By-pass Valve
- (1) Manifold manually operated pressure reducing regulator
- (1) Annular Fail-safe pressure reducing regulator
- (4) 11 Gallon Bladder Type
- Each accumulator manifold is equipped with a dual scale 0-6,000 PSI gauge and an isolation bleed valve.
- Air cooled diesel pump module with positive displacement triplex pump equipped with auto start and stop
- Solar panel charger for a continuous charge
- (1) 60:1 Ratio, 8-1/2” air pump with a hydro-pneumatic operated pressure switch to control start and stop
- Alarm Package: Low Fluid Level, Low Rig Air, Low Accumulator Pressure
Pneumatic Operated Drillers Remote Panel Consists of:
- (10) 3-way Spool Valves
- Pneumatic indicators for visual indication of the BOP Open/Close functions
- Air Receiver Gauges: Annular Pressure, Accumulator Pressure, Manifold Pressure
- Alarm Package with visual and audible indication: Low Fluid Level, Low Rig Air and Low Accumulator Pressure
- Equipped with (2) 150’ air hose bundle to interface the remote control panel and accumulator unit
- (1) Remote for BOP Control functions
- (1) for alarms and indications
